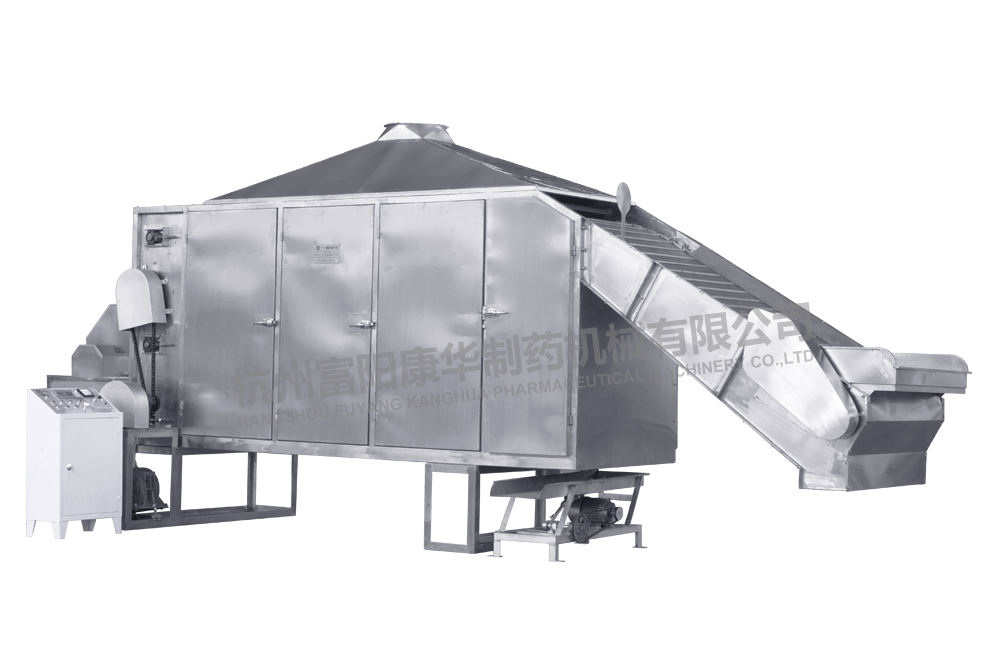

HG flap dryer

HG flap dryer





Product Video


Detail



Main uses:

This machine is suitable for traditional Chinese medicinal materials, aquatic products, and subsidiary agricultural products. Heat sources are coal, oil, steam, and electricity.

Features:

Automatic material feeding, continuous operation, electromagnetic stepless speed regulation, and high efficiency. It meets the requirement of GMP.



Main technical parameters:

Model

Capacity

(kg/h)

Drying area

(㎡)

Power

(kw)

Energy consumption

Dimension

(mm)

Ways of speed regulation

Weight

(kg)

HG-16

80-160

16

5.25

Steam consumption 400kg/h

8000×1900×2050

Electromagnetic speed regulation

4000

HG-16

80-160

16

5.25

Power consumption 72kw/h

8000×1900×2050

4000

HG-16

80-160

16

11.25

Coal consumption 25-40kg/h Oil consumption 9-15kg/h

8000×1900×2050

4000

HG-25

130-280

25

5.25

Steam consumption ≤450/h

8000×2350×2650

4500

HG-25

130-280

25

5.25

Power consumption 72kw/h

8000×2350×2650

4500

HG-25

130-280

25

11.25

Coal consumption 30-50kg/h

Oil consumption 15-20kg/h

8000×2350×2650

4500
