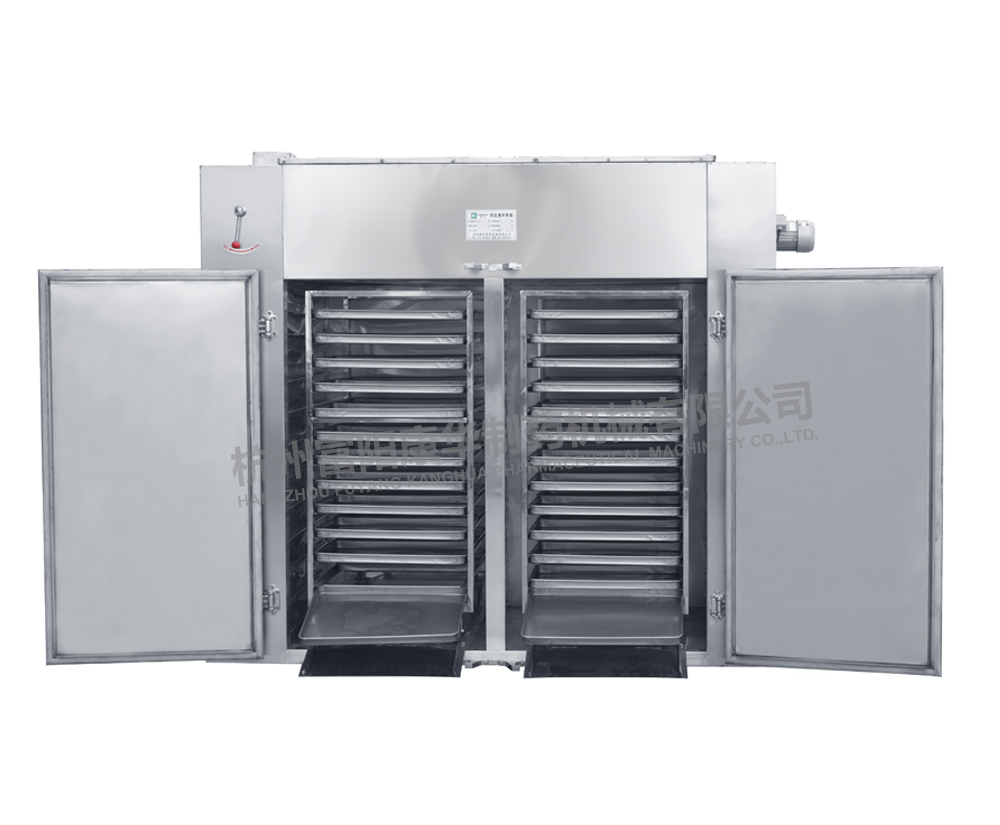

HX-II hot air circulating oven (two doors and vehicles)

HX-II hot air circulating oven (two doors and vehicles)





Product Video


Detail



Main uses:

This machine is suitable for heating and dehumidifying materilas and products in pharmaceutical, chemical, food, light and heavy industries.

Features:

High heat transfer efficiency, energy saving, low noise, stable operation, automatic temperature control, and convenient maintenance. It meets the requirement of GMP.



Main technical parameters:

Model



Capacity

(kg)

Power of fan

(kw)

Steam consumption

(kg/h)

Heating power

(kw)

Radiator area

(㎡)

Volume of wind

(m3/h)

Amount of trays

Amount of baker

Dimension

(mm)

Weight

(kg)

HX-O

30-80

0.45

10

14

10

3450

24

1

1430×1350×2100

600

HX-Ⅰ

100-160

0.45

18

24

20

3450

48

2

2530×1350×2100

930

HX-Ⅱ

160-350

0.9

36

48

40

6900

96

4

2530×2350×2100

1400

HX-Ⅲ

350-550

1.35

54

72

80

10350

144

6

3530×3200×2200

1900

HX-Ⅳ

550-700

1.8

72

96

96

13800

192

8

4460×2350×2300

2300
